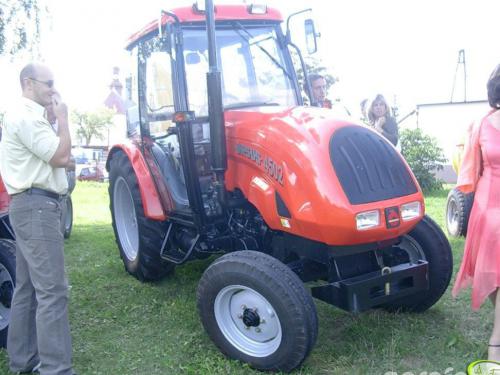

Ursus 4502 Tractors

Ursus 4502
Power: 59 hp
Date of manufacture :
0000 - 0000
Production
Manufacturer:Ursus
Type:Orchard/Vineyard tractor
Factory:Warsaw, Poland
Ursus 4502 Power
Engine:59.1 hp
44.1 kW
PTO (claimed):53.1 hp
39.6 kW
Ursus 4502 Engine
Mechanical
Chassis:4x2 2WD
Differential lock:mechanical rear
Steering:power
Brakes:mechanical drum
Cab:Two-post ROPS. Cab optional with available heat.
Transmissions:8-speed
 12-speed creeper
Capacity
Fuel:21.1 gal
79.9 L
Hydraulic system:11.1 gal
42.0 L
Steering:1.9 qts
1.8 L
Hydraulics
Capacity:11.1 gal
42.0 L
Pressure:2321 psi
160.0 bar
Pump flow:6.9 gpm
26.1 lpm
Steering cap.:1.9 qts
1.8 L
Tractor hitch
Rear Type:II
Control:Position and draft control
Rear lift:2932 lbs
1329 kg
Power Take-off (PTO)
Rear PTO:live
Rear RPM:540 (1.375)
Engine RPM:540@1686
Dimensions & Tires
Wheelbase:88.8 inches
225 cm
Weight:4938 lbs
2239 kg
Front tire:6.50-16
Rear tire:12.4-28
Full dimensions and tires ...
Electrical
Charging system:alternator
Charging amps:44
Charging volts:12
Battery volts:12
Battery AH:90
