Ursus 4514 Tractors

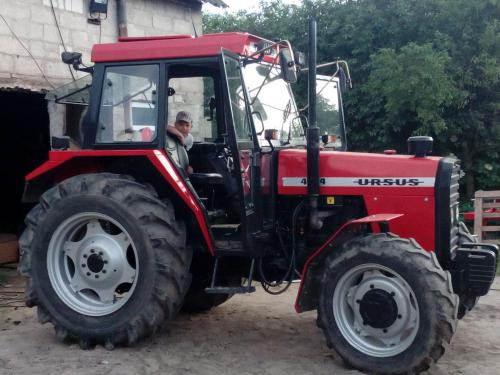

Ursus 4514
Power: 66 hp
Date of manufacture :
1988 - 2011
Production
Manufacturer:Ursus
Factory:Warsaw, Poland
Variants
4512:2WD
4514:4WD
Ursus 4514 Power
Engine:66 hp
49.2 kW
PTO (claimed):59 hp
44.0 kW
Ursus 4514 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Differential lock:mechanical rear
Steering:power
Brakes:mechanical wet disc
Cab:Cab optional with available heater.
Transmissions:8-speed gear
 12-speed creeper
Capacity
Fuel:21.1 gal
79.9 L
Hydraulic system:11.6 gal
43.9 L
Hydraulics
Capacity:11.6 gal
43.9 L
Pump flow:6.9 gpm
26.1 lpm
Tractor hitch
Rear Type:II
Control:position and draft control
Rear lift:5291 lbs
2399 kg
 6172 lbs
2799 kg *Optional, with lift ram.
Power Take-off (PTO)
Rear PTO:live
Rear RPM:540/1000 (1.375)
Engine RPM:540@1686
1000@1692
Dimensions & Tires
Wheelbase:90.6 inches
230 cm
Weight:6107 to 7275 pounds
Front tire:11.2R24
Rear tire:16.9R30
Full dimensions and tires ...
Electrical
Charging system:alternator
Charging amps:55
Battery volts:12
Battery AH:120
