| Production |
| Manufacturer: | Versatile
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Factory: | Winnipeg, Manitoba, Canada
|
| Original price: | $110,000 (1984 )
|
| Versatile 875 Power |
| Engine: | 280 hp
208.8 kW
|
| Drawbar (claimed): | 252 hp
187.9 kW
|
| Drawbar (tested): | 224.08 hp
167.1 kW
|
| PTO (tested): | 252.67 hp
188.4 kW
|
| Mechanical |
| Chassis: | 4x4 articulated 4WD
|
| Final drives: | outboard planetary
|
| Steering: | articulated power
|
| Brakes: | hydraulic disc
|
| Cab: | Cab with air-conditioning.
|
| Transmission: | 12-speed gear
|

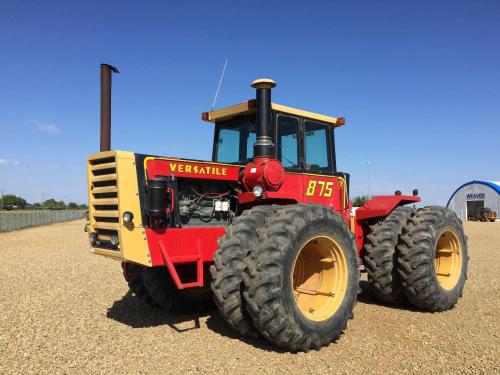

| Photos |
| | Versatile 875 photos... |
| Capacity |
| Fuel: | 185 gal
700.2 L
|
| Hydraulic system: | 21 gal
79.5 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 21 gal
79.5 L
|
| Pressure: | 2250 psi
155.1 bar
|
| Valves: | 4
|
| Pump flow: | 23.6 gpm
89.3 lpm
|
| Steering flow: | 26.1 gpm
98.8 lpm
|
| Tractor hitch |
| Rear Type: | 4N/3
|
| Power Take-off (PTO) |
| Rear RPM: | 1000
|
| Dimensions & Tires |
| Wheelbase: | 130 inches
330 cm
|
| Weight: | 25,630 lbs
11625 kg
|
| Front tire: | 20.8x38
|
| Rear tire: | 20.8x38
|
| Full dimensions and tires ... |
| 875 Serial Numbers |
| Location: | Serial number plate on the cab door post.
|
| 1978: | 875 78 052501
|
| 1979: | 875 79 053201
|
| 1980: | 875 80 054301
|
| 1981: | 875 81 055501
|
| 1982: | 875 82 056601
|
| 1983: | 875 83 057801
|
| 1984: | 875 84 059025
|
| Final: | 875 84 059617
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 75
|
| Batteries: | 2
|
| Battery CCA: | 900
|
| Battery volts: | 12
|
| Battery Group: | 80
|
|
