Versatile 850 Tractors

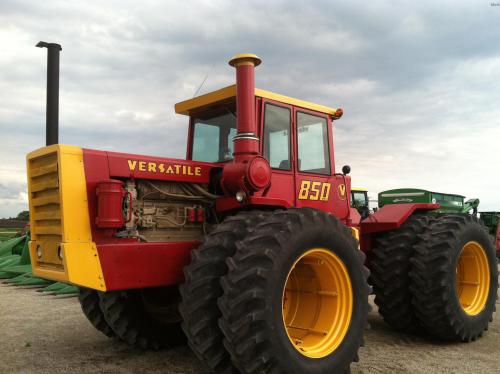

Versatile 850
Power: 280 hp
Date of manufacture :
1973 - 1977
Production
Manufacturer:Versatile
Type:Four-wheel Drive (4WD) tractor
Factory:Winnipeg, Manitoba, Canada
Versatile 850 Power
Engine:280 hp
208.8 kW
Versatile 850 Engine
Mechanical
Chassis:4x4 articulated 4WD
Final drives:planetary
Steering:articulated power
Brakes:hydraulic disc
Cab:Cab standard with available heater and air-conditioning.
Transmission:12-speed gear
Capacity
Fuel:145 gal
548.8 L *Combined capacity of both fuel tanks.
Hydraulic system:23.75 gal
89.9 L
Hydraulics
Type:open center
Capacity:23.75 gal
89.9 L
Pressure:2000 psi
137.9 bar
Valves:3
Pump flow:20 gpm
75.7 lpm
Steering flow:24 gpm
90.8 lpm
Steering press.:1850 psi
127.6 bar
Tractor hitch
Rear Type:III*Optional
Dimensions & Tires
Wheelbase:130 inches
330 cm
Weight:18500 lbs
8391 kg
Front tire:24.5x32
Rear tire:24.5x32
Full dimensions and tires ...
850 Serial Numbers
Location:Serial number plate on the front console.
1973:085101
1974:850 050001
1975:850 3050501
1976:850 76 051101
1977:850 77 051901
Final:850 77 052350

how to read serial numbers...

Electrical
Ground:negative
Charging system:alternator
Charging amps:58
Batteries:2
Battery volts:12
Battery AH:204
