Volvo 2200 Tractors

Volvo 2200
Power: 56 hp
Date of manufacture :
1978 - 1981
Production
Manufacturer:Volvo
Type:Utility tractor
Total built:1819
Variants
2200:2WD
2204:4WD
Volvo 2200 Power
Engine:56 hp
41.8 kW
PTO (claimed):46 hp
34.3 kW
Volvo 2200 Engine
Mechanical
Chassis:4x2 2WD
Steering:hydrostatic power
Brakes:hydraulic wet disc
Cab:Volvo BM cab standard with heater.
Transmissions:8-speed synchromesh
 16-speed two-speed power shift

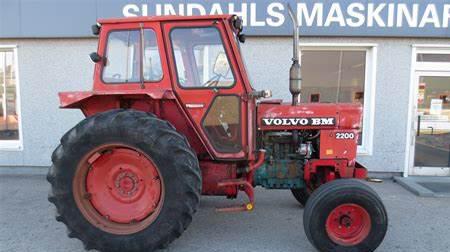

Photos
Volvo 2200 photos...
Hydraulics
Pressure:2495 psi
172.0 bar
Valves:2
Pump flow:11.9 gpm
45.0 lpm
Tractor hitch
Rear Type:II
Control:position and draft control
Rear lift:4079 lbs
1850 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540 (1.375)
Engine RPM:540@1940
Dimensions & Tires
Wheelbase:85.43 inches
216 cm
Weight:6493 lbs
2945 kg
Front tire:7.50-16
Rear tire:13.6-38
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:35
Batteries:2
Battery volts:12
Battery AH:140
