Volvo 2254 Tractors

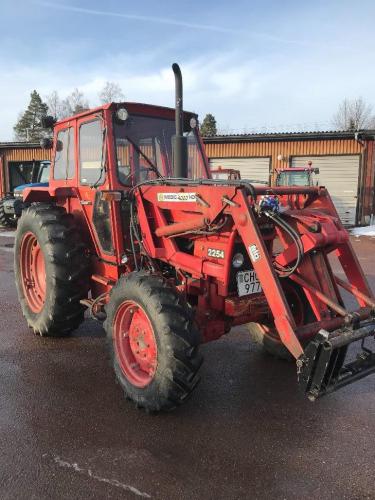

Volvo 2254
Power: 68 hp
Date of manufacture :
1979 - 1981
Production
Manufacturer:Volvo
Type:Utility tractor
Total built:865
Variants
2250:2WD
2254:4WD
Volvo 2254 Power
Engine:68 hp
50.7 kW
PTO (claimed):56 hp
41.8 kW
Volvo 2254 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:hydraulic wet disc
Cab:Volvo BM cab standard with heater.
Transmissions:8-speed synchromesh
 16-speed two-speed power shift
Hydraulics
Pressure:2495 psi
172.0 bar
Valves:2
Pump flow:11.9 gpm
45.0 lpm
Tractor hitch
Rear Type:II
Control:position and draft control
Rear lift:4900 lbs
2222 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540 (1.375)
 540/1000 (1.375)
Engine RPM:540@1940
1000@2190
Dimensions & Tires
Wheelbase:85.43 inches
216 cm
Weight:7308 lbs
3314 kg
Front tire:11.2-24
Rear tire:13.6-38
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:35
Batteries:2
Battery volts:12
Battery AH:140
