| Production |
| Manufacturer: | White
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Original price: | $76,000 (1987 )
|

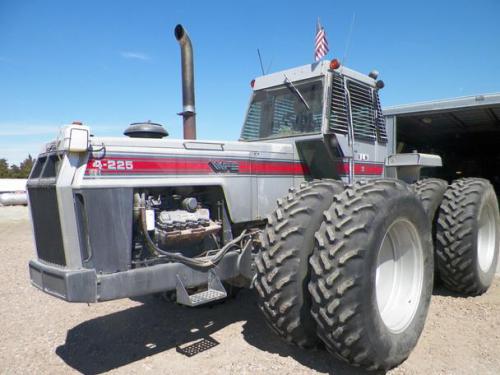

| White 4-225 Power |
| Engine: | 225 hp
167.8 kW
|
| Drawbar (tested): | 168.78 hp
125.9 kW
|
| PTO (tested): | 195.65 hp
145.9 kW
|
| Mechanical |
| Chassis: | 4x4 articulated 4WD
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic wet discs
|
| Cab: | Cab standard with air-conditioning. Optional radio, 8-track, and cassette.
|
| Transmission: | 18-speed partial powershift
|
| Capacity |
| Fuel: | 94 gal
355.8 L
|
| Hydraulic system: | 23 gal
87.1 L
|
| Hydraulics |
| Type: | closed center
|
| Capacity: | 23 gal
87.1 L
|
| Pressure: | 2250 psi
155.1 bar
|
| Valves: | 2
|
| Total flow: | 25 gpm
94.6 lpm
|
| Tractor hitch |
| Rear Type: | III
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000
|
| Dimensions & Tires |
| Wheelbase: | 117.75 inches
299 cm
|
| Weight: | 22760 to 23700 pounds
|
| Front tire: | 18.4-38
|
| Rear tire: | 18.4-38
|
| Full dimensions and tires ... |
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 90
|
| Batteries: | 2
|
| Battery volts: | 12
|
|
