| Production |
| Manufacturer: | White
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Original price: | $88,750 (1988 )
|
| White 4-270 Power |
| Engine: | 270 hp
201.3 kW
|
| Drawbar (tested): | 207.98 hp
155.1 kW
|
| PTO (tested): | 239.25 hp
178.4 kW
|
| Mechanical |
| Chassis: | 4x4 articulated 4WD
|
| Steering: | articulated power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Cab standard with air-conditioning. Optional radio, 8-track, and cassette.
|
| Transmission: | 16-speed partial power shift
|
| Photos |

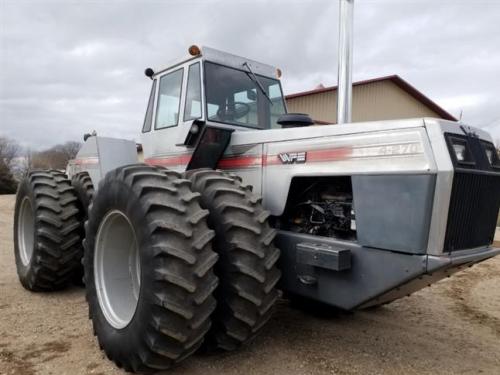

| | White 4-270 photos... |
| Capacity |
| Fuel: | 230 gal
870.6 L
|
| Hydraulic system: | 23 gal
87.1 L
|
| Hydraulics |
| Type: | closed center
|
| Capacity: | 23 gal
87.1 L
|
| Pressure: | 2250 psi
155.1 bar
|
| Valves: | 3 or 4
|
| Total flow: | 27 gpm
102.2 lpm
|
| Tractor hitch |
| Rear Type: | IV*Optional
|
| Rear lift: | 12,500 lbs
5670 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000
|
| Dimensions & Tires |
| Wheelbase: | 129.5 inches
328 cm
|
| Weight: | 29060 to 30215 pounds
|
| Front tire: | 18.4-38
|
| Rear tire: | 18.4-38
|
| Full dimensions and tires ... |
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 90
|
| Batteries: | 3
|
| Battery volts: | 12
|
|
