| Production |
| Manufacturer: | Zetor
|
| Factory: | Brno, Czechoslovakia
|
| Original price: | $20,500 (1992 )
|
| Variants |
| 7711: | 2WD
|
| 7745: | 4WD
|
| Zetor 7745 Power |
| Engine: | 81 hp
60.4 kW
|
| Drawbar (claimed): | 58 hp
43.3 kW
|
| PTO (claimed): | 66 hp
49.2 kW
|
| | 75 hp
55.9 kW (turbo)
|
| Drawbar (tested): | 55.87 hp
41.7 kW
|
| PTO (tested): | 65.74 hp
49.0 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | power assist
|
| Brakes: | differential hydraulic dry disc
|
| Transmission: | 10-speed partially synchronized
|
| Photos |

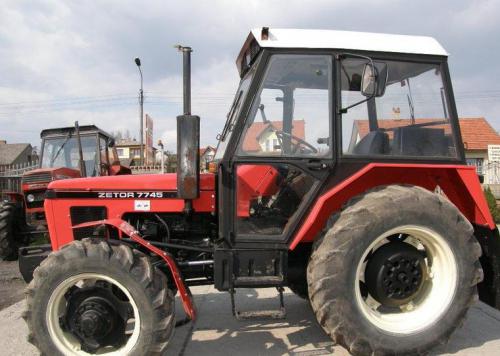

| | Zetor 7745 photos... |
| Hydraulics |
| Type: | open
|
| Pressure: | 2,321 psi
160.0 bar
|
| Valves: | 2
|
| Total flow: | 7.9 gpm
29.9 lpm
|
| Tractor hitch |
| Rear Type: | II/I
|
| Rear lift: | 5300 lbs
2404 kg
|
| Front Hitch: | II (optional)
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| Front RPM: | 1000
|
| Dimensions & Tires |
| Wheelbase: | 88.9 inches
225 cm
|
| Weight: | 7900 lbs
3583 kg
|
| Front tire: | 10x24
|
| Rear tire: | 14x30
|
| Full dimensions and tires ... |
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 55
|
| Battery volts: | 12
|
|
