Navigation: Home > Zetor > 8020

Zetor 8020 Tractors

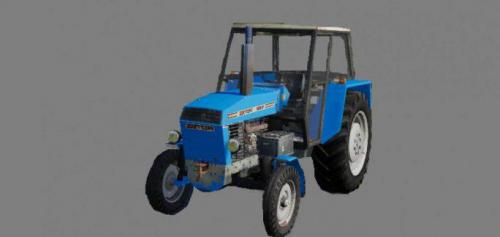

Zetor 8020
Power: 82 hp
Date of manufacture :
2008 - 2011
Production
Manufacturer:Zetor
Factory:Brno, Czech Republic
Variants
8020:2WD
8040:4WD
Zetor 8020 Power
Engine (gross):82 hp
61.1 kW
Engine (net):78 hp
58.2 kW
PTO (claimed):73 hp
54.4 kW
Zetor 8020 Engine
Mechanical
Chassis:4x2 2WD
Differential lock:mechanical rear
Steering:power
Brakes:hydraulic wet disc
Cab:Two-post folding ROPS. Cab optional with air-conditioning.
Transmission:12-speed synchronized
Hydraulics
Type:open center
Pressure:2900 psi
200.0 bar
Valves:1 to 3
SCV flow:14 gpm
53.0 lpm
 17 gpm
64.3 lpm *Optional
Total flow:20 gpm
75.7 lpm
Steering flow:6 gpm
22.7 lpm
Tractor hitch
Rear Type:II/I
Control:position and draft control
Rear lift (at ends):7600 lbs
3447 kg
 9150 lbs
4150 kg *Optional
Power Take-off (PTO)
Rear PTO:independent
Clutch:mechanical
Rear RPM:540 (1.375)
Dimensions & Tires
Wheelbase:91 inches
231 cm
Weight:7040 to 7540 pounds
Front tire:9.00-16
Rear tire:16.9-30
Electrical
Ground:negative
Charging system:alternator
ROPS Charging amps:55
Cab Charging amps:95
Charging volts:12
Battery CCA:950
Battery volts:12
