Branson 4225H Tractors

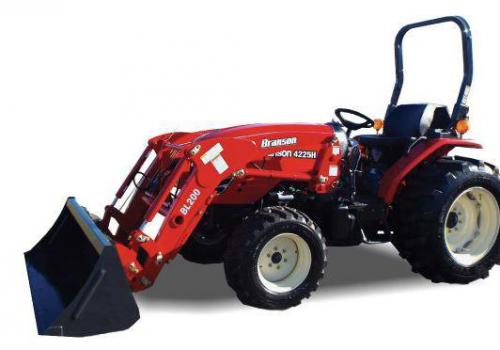

Branson 4225H
Power: 42 hp
Date of manufacture :
0000 - 0000
Production
Manufacturer:Branson (a part of Kukje)
Type:Compact Utility tractor
Variants
4225R:ROPS shuttle
4225H:ROPS hydrostatic
4225C:Cab shuttle
4225CH:Cab hydrostatic
Branson 4225H Power
Engine (net):42 hp
31.3 kW
PTO (claimed):35 hp
26.1 kW
Branson 4225H Engine
Mechanical
Chassis:4x4 MFWD 4WD
Differential lock:mechanical rear
Steering:power
Brakes:wet disc
Cab:Two-post folding ROPS.
Transmission:hydrostatic
Capacity
Fuel:12 gal
45.4 L
Hydraulic system:10 gal
37.9 L
Hydraulics
Type:open center
Capacity:10 gal
37.9 L
Pressure:2100 psi
144.8 bar
Pump flow:10.4 gpm
39.4 lpm
Total flow:15.4 gpm
58.3 lpm
Steering flow:5 gpm
18.9 lpm
Tractor hitch
Rear Type:I
Control:position control
Rear lift (at ends):3306 lbs
1499 kg
Rear lift (at 24"/610mm):2420 lbs
1097 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:electro-hydraulic wet disc
Rear RPM:540/540E (1.375)
Engine RPM:540@2500
540E@2000
Dimensions & Tires
Wheelbase:71.1 inches
180 cm
Weight:4153 lbs
1883 kg
Front tire:9.5x16
Rear tire:12.4x28
Electrical
Ground:negative
Charging system:alternator
Charging amps:70
Battery volts:12
