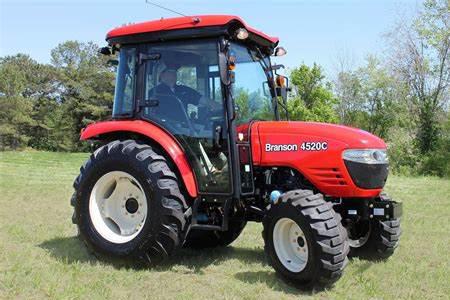

Branson 4520C Tractors

Branson 4520C
Power: 47 hp
Date of manufacture :
0000 - 0000
Production
Manufacturer:Branson
Type:Compact Utility tractor
Variants
4520R:ROPS
4520C:Cab
Branson 4520C Power
Engine:47 hp
35.0 kW
PTO (claimed):42 hp
31.3 kW
Branson 4520C Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:wet disc
Cab:Cab standard.
Transmission:12-speed syncro shuttle
Hydraulics
Type:open center
Mid valves:2
Pump flow:11.1 gpm
42.0 lpm
Steering flow:5 gpm
18.9 lpm
Tractor hitch
Rear Type:I
Control:position control
Rear lift:3306 lbs
1499 kg
Rear Arms:telescopic lower arms
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/790 (1.375)
Dimensions & Tires
Wheelbase:70.9 inches
180 cm
Weight:4118 lbs
1867 kg
Front tire:7-16
Rear tire:11.2-24
Electrical
Ground:negative
Battery volts:12
