Cabelas LM25 Tractors

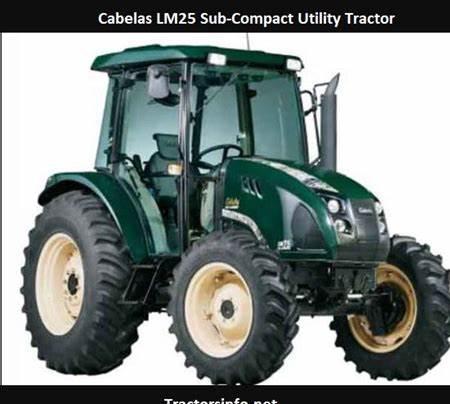

Cabelas LM25
Power: 24 hp
Date of manufacture :
2014 - 2016
Production
Distributor:Cabelas
Manufacturer:TYM
Type:Sub-Compact Utility tractor
Factory:South Korea
Original price:$13,999 (2016 )
Cabelas LM25 Power
Engine (gross):24 hp
17.9 kW
PTO (claimed):17.4 hp
13.0 kW
Cabelas LM25 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Two-post folding ROPS.
Transmission:hydrostatic
Capacity
Fuel:5.3 gal
20.1 L
Hydraulic system:3.8 gal
14.4 L
Front axle:3.7 qts
3.5 L
Hydraulics
Type:open center
Capacity:3.8 gal
14.4 L
Pump flow:4.5 gpm
17.0 lpm
Total flow:7.1 gpm
26.9 lpm
Steering flow:2.64 gpm
10.0 lpm
Tractor hitch
Rear Type:IN
Control:position control
Rear lift (at ends):1323 lbs
600 kg
Rear lift (at 24"/610mm):992 lbs
449 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:electro-hydraulic
Rear RPM:540 (1.375)
Mid PTO:independent
Dimensions & Tires
Wheelbase:575 inches
1460 cm
Weight:1610 lbs
730 kg
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:50
Battery volts:12
