| Production |
| Distributor: | Cabelas
|
| Manufacturer: | TYM
|
| Type: | Compact Utility tractor
|
| Factory: | South Korea
|
| Original price: | $21,999 (2013 shuttle )
|
| Original price: | $23,499 (2013 hydrostatic )
|
| Original price: | $17,999 (2014 shuttle )
|
| Original price: | $20,099 (2014 hydrostatic )
|
| Variants |
| LM35: | shuttle
|
| LM35H: | hydrostatic
|
| Cabelas LM35 Power |
| Engine (gross): | 35 hp
26.1 kW
|
| PTO (claimed): | 29 hp
21.6 kW (shuttle)
|
| | 26 hp
19.4 kW (hydro)
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | hydrostatic power
|
| Cab: | Two-post foldable ROPS.
|
| Transmissions: | 12-speed synchronized shuttle
|
| | hydrostatic
|
| Photos |

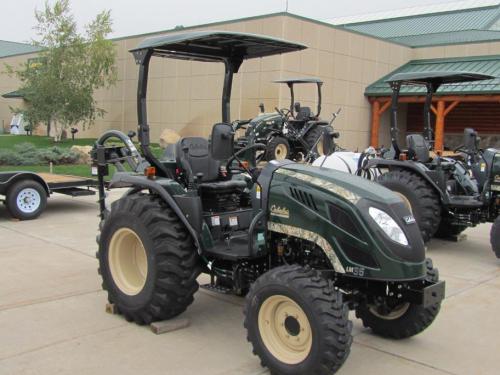

| | Cabelas LM35 photos... |
| Capacity |
| Fuel: | 9 gal
34.1 L
|
| Hydraulic system: | 8.5 gal
32.2 L (shuttle)
|
| | 9.2 gal
34.8 L (hydro)
|
| Front axle: | 8.7 qts
8.2 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 8.5 gal
32.2 L (shuttle)
|
| | 9.2 gal
34.8 L (hydro)
|
| Valves: | 1
|
| Pump flow: | 6.3 gpm
23.8 lpm
|
| Total flow: | 10.6 gpm
40.1 lpm (shuttle)
|
| | 10.9 gpm
41.3 lpm (hydro)
|
| Steering flow: | 4.3 gpm
16.3 lpm (shuttle)
|
| | 4.6 gpm
17.4 lpm (hydro)
|
| Tractor hitch |
| Rear Type: | I
|
| Control: | position control
|
| Rear lift (at ends): | 2646 lbs
1200 kg
|
| Rear lift (at 24"/610mm): | 1764 lbs
800 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro hydraulic
|
| Rear RPM: | 540 (1.375)
|
| | 540/1000 (1.375)
|
| Mid PTO: | independent
|
| Mid RPM: | 2000
|
| Dimensions & Tires |
| Wheelbase: | 64.5 inches
163 cm
|
| Weight: | 3140 lbs
1424 kg
|
| Front tire: | 7-16
|
| Rear tire: | 11.2-24
|
| LM35 Serial Numbers |
| Location: | Tractor frame, left side, above front axle.
|
photo of LM35 serial number
| |
