| Production |
| Distributor: | Cabelas
|
| Manufacturer: | TYM
|
| Type: | Compact Utility tractor
|
| Factory: | South Korea
|
| Original price: | $27,699 (2013 shuttle ROPS )
|
| Original price: | $29,499 (2013 hydrostatic ROPS )
|
| Original price: | $36,499 (2013 hydrostatic cab )
|
| Original price: | $21,699 (2014 shuttle ROPS )
|
| Original price: | $23,199 (2014 hydrostatic ROPS )
|
| Original price: | $26,399 (2014 hydrostatic cab )
|
| Variants |
| LM43: | shuttle
|
| LM43H: | hydrostatic
|
| Cabelas LM43 Power |
| Engine (gross): | 42.7 hp
31.8 kW
|
| PTO (claimed): | 34.4 hp
25.7 kW (gear)
|
| | 31.2 hp
23.3 kW (hydro)
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | hydrostatic power
|
| Cab: | Two-post ROPS. Cab optional with air conditioning.
|
| Transmissions: | 16-speed synchronized shuttle
|
| | hydrostatic
|
| Photos |

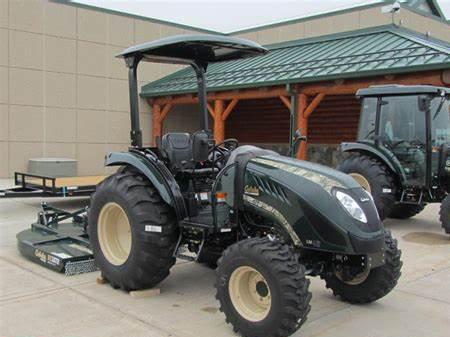

| | Cabelas LM43 photos... |
| Capacity |
| Fuel: | 17 gal
64.3 L
|
| Hydraulic system: | 9.2 gal
34.8 L
|
| Front axle: | 10.5 qts
9.9 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 9.2 gal
34.8 L
|
| Valves: | 2 to 3
|
| Pump flow: | 8.8 gpm
33.3 lpm
|
| Total flow: | 13.4 gpm
50.7 lpm
|
| Steering flow: | 4.6 gpm
17.4 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Control: | position and draft control
|
| Rear lift (at ends): | 3314 lbs
1503 kg
|
| Rear lift (at 24"/610mm): | 2945 lbs
1335 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro hydraulic
|
| Rear RPM: | 540 (1.375)
|
| Dimensions & Tires |
| Wheelbase: | 76.2 inches
193 cm
|
| Weight: | 3640 to 4120 pounds
|
| Front tire: | 9.5-16
|
| Rear tire: | 14.9-24
|
| LM43 Serial Numbers |
| Location: | Tractor frame, right side, above front axle.
|
photo of LM43 serial number
| |
