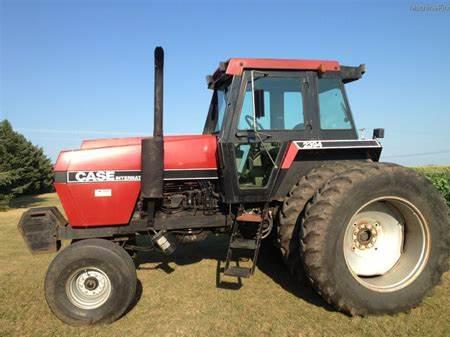

Case 2394 Tractors

Case 2394
Power: 197 hp
Date of manufacture :
1984 - 0000
Production
Manufacturer:J.I. Case
Type:Row-Crop tractor
Factory:Racine, Wisconsin, USA
J.I. Case 2394 Power
Engine:197 hp
146.9 kW
Drawbar (claimed):142 hp
105.9 kW
PTO (claimed):160 hp
119.3 kW
Drawbar (tested):137.78 hp
102.7 kW
PTO (tested):162.15 hp
120.9 kW
J.I. Case 2394 Engine
Mechanical
Chassis:4x2 2WD
Steering:power
Brakes:wet disc
Cab:Silent Guardian cab with air-conditioning.
Transmissions:12-speed three-speed power shift
 24-speed four-speed power shift
Capacity
Fuel:85 gal
321.7 L
 25 gal
94.6 L *Optional auxiliary tank
Hydraulic system:32 gal
121.1 L
Hydraulics
Type:closed center
Capacity:32 gal
121.1 L
Pressure:2250 psi
155.1 bar
Valves:2 to 4
Pump flow:27 gpm
102.2 lpm
Steering flow:8 gpm
30.3 lpm
Steering press.:2000 psi
137.9 bar
Tractor hitch
Rear Type:III
Rear lift (at 24"/610mm):7,750 lbs
3515 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:hydraulic
Rear RPM:1000
Dimensions & Tires
Wheelbase:118 inches
299 cm
Weight:14270 to 16240 pounds
Front tire:11.00x16
Rear tire:18.4x38
Full dimensions and tires ...
2394 Serial Numbers
Location:Inside cab or on right-front frame
1984:9931802
1985:9939020
1986:9941573
1987:9945454
1988:9948517

how to read serial numbers...

Electrical
Ground:negative
Charging system:alternator
Charging amps:72
 105*Optional
Battery volts:12
