Navigation: Home > Case > 2096

Case 2096 Tractors

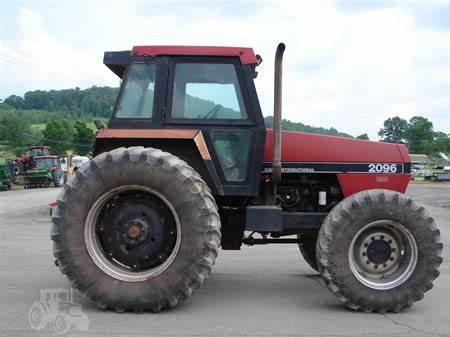

Case 2096
Power: 128 hp[P]
Date of manufacture :
1984 - 1985
Production
Manufacturer:J.I. Case
Type:Row-Crop tractor
Factory:Racine, Wisconsin, USA
Original price:$40,000 (1989 )
J.I. Case 2096 Power
Drawbar (claimed):101 hp
75.3 kW
PTO (claimed):116 hp
86.5 kW
Drawbar (tested):100.56 hp
75.0 kW
PTO (tested):115.67 hp
86.3 kW
J.I. Case 2096 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Differential lock:electric rear
Steering:power
Brakes:differential hydraulic wet discs
Cab:Two-post folding ROPS. Cab optional with air-conditioning.
Transmission:12-speed three-speed power shift
Capacity
Fuel:65 gal
246.0 L
Hydraulic system:25 gal
94.6 L
Hydraulics
Type:closed center
Capacity:25 gal
94.6 L
Pressure:2250 psi
155.1 bar
Valves:2
Pump flow:23 gpm
87.1 lpm
Steering flow:8 gpm
30.3 lpm
Tractor hitch
Rear Type:II
Rear lift (at 24"/610mm):8,250 lbs
3742 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000 (1.375)
Dimensions & Tires
Wheelbase:108 inches
274 cm
Weight:11875 to 14180 pounds
Front tire:11.00-16
2WD Rear tire:18.4-38
Full dimensions and tires ...
2096 Serial Numbers
Location:Inside cab the rear window or door
1984:9931800
1985:9938100
1986:9941573
1987:17897512
1988:17897658
1989:17898172

how to read serial numbers...

Electrical
Ground:negative
Charging system:alternator
Charging amps:105
Battery volts:12
