| Production |
| Manufacturer: | J.I. Case
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Factory: | Racine, Wisconsin, USA
|
| Total built: | 1,259
|
| Original price: | $57,000 (1979 )
|
| J.I. Case 2870 Power |
| Engine: | 300 hp
223.7 kW
|
| Drawbar (claimed): | 219 hp
163.3 kW
|
| PTO (claimed): | 252 hp
187.9 kW
|
| Drawbar (tested): | 210.64 hp
157.1 kW
|
| PTO (tested): | 252.10 hp
188.0 kW
|
| Mechanical |
| Chassis: | 4x4 4WD
|
| Steering: | hydrostatic power, four-wheel steering
|
| Brakes: | hydraulic dry disc
|
| Cab: | Cab standard
|
| Transmission: | 12-speed partial powershift
|
| Photos |

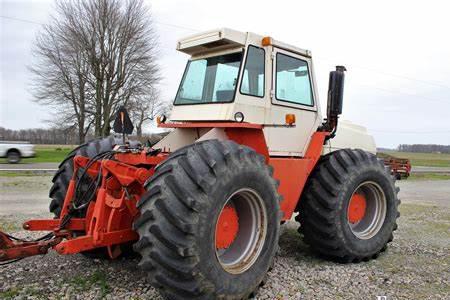

| | J.I. Case 2870 photos... |
| Hydraulics |
| Type: | open center
|
| Valves: | 2
|
| Total flow: | 44 gpm
166.5 lpm
|
| Tractor hitch |
| Rear Type: | III
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000
|
| Dimensions & Tires |
| Wheelbase: | 110 inches
279 cm
|
| Weight: | 25,100 lbs
11385 kg
|
| Front tire: | 18.4-34
|
| Rear tire: | 18.4-34
|
| Full dimensions and tires ... |
| 2870 Serial Numbers |
| 1976: | 8792901
|
| 1977: | 8825001
|
| 1978: | 8853001
|
| 1979: | 8853001
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
|
