| Production |
| Manufacturer: | J.I. Case
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Factory: | Racine, Wisconsin, USA
|
| Original price: | $78,000 (1985)
|
| J.I. Case 4494 Power |
| Engine: | 213 hp
158.8 kW
|
| PTO (claimed): | 175 hp
130.5 kW
|
| Drawbar (tested): | 150.14 hp
112.0 kW
|
| PTO (tested): | 175.20 hp
130.6 kW
|
| Mechanical |
| Chassis: | 4x4 4WD
|
| Steering: | hydraulic, front, rear or four-wheel crab steering
|
| Brakes: | hydraulic dry disc
|
| Cab: | Silent Guardian cab standard
|
| Transmission: | 12-speed
|
| Photos |

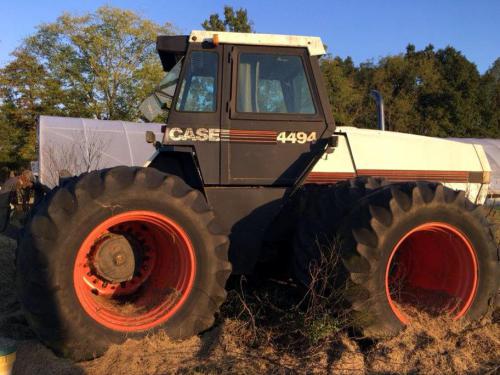

| | J.I. Case 4494 photos... |
| Capacity |
| Fuel: | 128 gal
484.5 L
|
| Hydraulic system: | 15.5 gal
58.7 L
|
| Hydraulics |
| Type: | closed center
|
| Capacity: | 15.5 gal
58.7 L
|
| Pressure: | 2350 psi
162.0 bar
|
| Valves: | 2 to 4
|
| Total flow: | 31 gpm
117.3 lpm
|
| Tractor hitch |
| Rear Type: | III (optional)
|
| Rear lift (at 24"/610mm): | 12,750 lbs
5783 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent (optional)
|
| Rear RPM: | 1000
|
| Engine RPM: | 1000@2200
|
| Dimensions & Tires |
| Wheelbase: | 102 inches
259 cm
|
| Weight: | 20,840 lbs
9453 kg
|
| Front tire: | 18.4-34
|
| Rear tire: | 18.4-34
|
| Full dimensions and tires ... |
| 4494 Serial Numbers |
| Location: | Data plates located at forward-right corner in top of the tractor cab.
|
| 1984: | 8865000
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Battery volts: | 12
|
|
