Case 430 Tractors

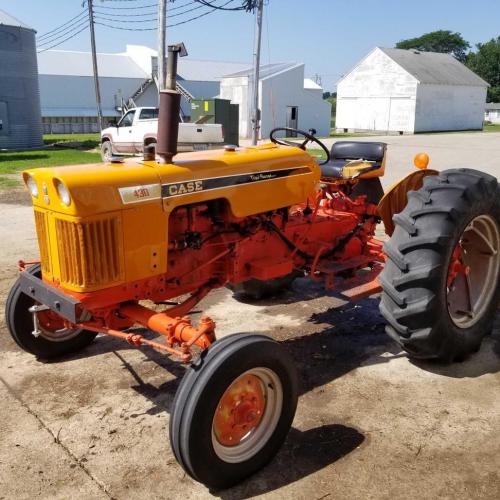

Case 430
Power: 37 hp[P]
Date of manufacture :
1960 - 1969
Production
Manufacturer:J.I. Case
Type:Utility tractor
Factories:Rock Island, Illinois, USA
 Racine, Wisconsin, USA
Original price:$4,400 (1969 )
Variants
430:standard-front diesel
431:row-crop diesel
440:standard-front gas
441:row-crop gas
445:industrial
J.I. Case 430 Power
PTO (claimed):34 hp
25.4 kW
Plows:3
J.I. Case 430 Engine
Mechanical
Chassis:4x2 2WD
Steering:manual
 power*Power steering from 1965 and later.
Brakes:mechanical band/disc
Cab:Open operator station
Transmissions:4-speed unsynchronized gear
 12-speed unsynchronized gear
 8-speed mechanical shuttle
Photos
J.I. Case 430 photos...
Hydraulics
Type:Dual-Control
Valves:1
Pump flow:8.5 gpm
32.2 lpm
Tractor hitch
Rear Type:I
Control:Draft-o-Matic draft control
Type:Case Eagle Hitch
Power Take-off (PTO)
Rear PTO:live
 independent*Independent PTO optional beginning in 1966.
Rear RPM:540
 540/1000
Dimensions & Tires
Wheelbase:75.25 inches
191 cm
Weight:3125 lbs
1417 kg
Front tire:6.00x16
Rear tire:11x24
Full dimensions and tires ...
430 Serial Numbers
Location:Plate on instrument panel
1960:6144001
1961:6162601
1962:8190001
1963:8208001
1964:8229001
1965:8253501
1966:8279001
1967:8306501
1968:8332101
1969:8356251

how to read serial numbers...

Belt Pulley
Diameter:10.25 inches
26 cm
Width:6 inches
15 cm
RPM:1190
