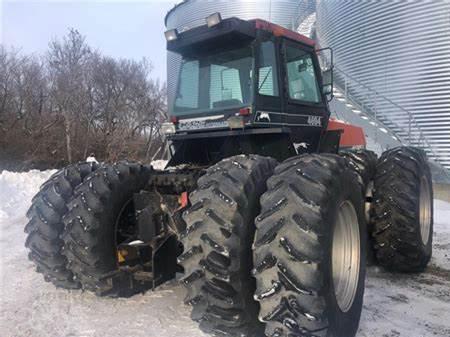

Case 4694 Tractors

Case 4694
Power: 261 hp
Date of manufacture :
1984 - 0000
Production
Manufacturer:J.I. Case
Type:Four-wheel Drive (4WD) tractor
Factory:Racine, Wisconsin, USA
Original price:$93,000 (1985)
J.I. Case 4694 Power
Engine:261 hp
194.6 kW
PTO (claimed):219 hp
163.3 kW
Drawbar (tested):189.75 hp
141.5 kW
PTO (tested):219.62 hp
163.8 kW
J.I. Case 4694 Engine
Mechanical
Chassis:4x4 4WD
Steering:hydraulic, front, rear or four-wheel crab steering
Brakes:hydraulic dry disc
Cab:Silent Guardian cab standard.
Transmission:12-speed
Capacity
Fuel:128 gal
484.5 L
Hydraulic system:15.5 gal
58.7 L
Hydraulics
Type:closed center
Capacity:15.5 gal
58.7 L
Pressure:2350 psi
162.0 bar
Valves:2 to 4
Total flow:31 gpm
117.3 lpm
Tractor hitch
Rear Type:III (optional)
Rear lift (at 24"/610mm):12,750 lbs
5783 kg
Power Take-off (PTO)
Rear PTO:independent (optional)
Rear RPM:1000
Engine RPM:1000@2200
Dimensions & Tires
Wheelbase:102 inches
259 cm
Weight:22,310 lbs
10119 kg
Front tire:18.4-34
Rear tire:18.4-34
Full dimensions and tires ...
4694 Serial Numbers
Location:Data plates located at forward-right corner in top of the tractor cab.
1984:8865000

how to read serial numbers...

Electrical
Ground:negative
Battery volts:12
