Navigation: Home > Case > CF 350

Case CF 350 Tractors

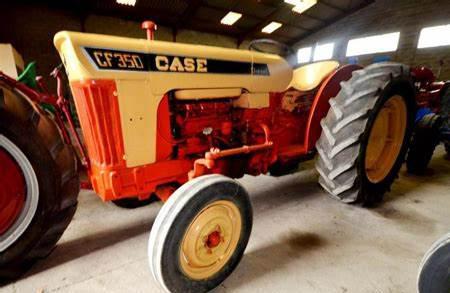

Case CF 350
Power: 35 hp
Date of manufacture :
1962 - 1966
Production
Manufacturer:J.I. Case
Type:Utility tractor
Factory:Vierzon, France
J.I. Case CF 350 Power
Engine:35 hp
26.1 kW
J.I. Case CF 350 Engine
Mechanical
Chassis:4x2 2WD
Final drives:planetary
Differential lock:mechanical rear
Steering:manual
Brakes:mechanical drum
Cab:Open operator station.
Transmission:8-speed gear
Capacity
Fuel:13.2 gal
50.0 L
Hydraulic system:2.25 gal
8.5 L
Hydraulics
Type:open center
Capacity:2.25 gal
8.5 L
Tractor hitch
Rear Type:II/I
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000
Mid PTO:independent
Mid RPM:1000
Dimensions & Tires
Wheelbase:72.8 inches
184 cm
Weight:3748 lbs
1700 kg
Front tire:6.00-16
Rear tire:11-28
Full dimensions and tires ...
