Power: 180 hp[P] Date of manufacture : 1985 - 1987

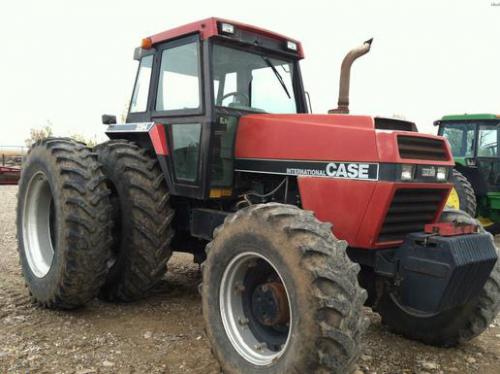

Production Manufacturer: CaseIH Type: Row-Crop tractor Factory: Racine, Wisconsin, USA Original price: $71,000 (1987 ) CaseIH 3394 Power PTO (claimed): 162 hp 120.8 kW Drawbar (tested): 141.17 hp 105.3 kW PTO (tested): 162.86 hp 121.4 kW CaseIH 3394 Engine Mechanical Chassis: 4x4 MFWD 4WD Steering: hydrostatic power Brakes: differential hydraulic wet disc Cab: Cab standard Transmissions: 24-speed partial power shift   12-speed partial power shift Capacity Fuel: 85 gal 321.7 L Hydraulic system: 33.25 gal 125.9 L Hydraulics Type: closed center Capacity: 33.25 gal 125.9 L Valves: 2 to 4 Pump flow: 30 gpm 113.6 lpm Tractor hitch Rear Type: III Rear lift (at 24"/610mm): 7,750 lbs 3515 kg Power Take-off (PTO) Rear PTO: independent Rear RPM: 1000 Dimensions & Tires Wheelbase: 116 inches 294 cm Weight: 15620 lbs 7085 kg Front tire: 16.9-26 Rear tire: 24.5R-32 Full dimensions and tires ... 3394 Serial Numbers Location: Inside cab 1985: 9938100 1986: 9941573 1987: 9945448 how to read serial numbers... Electrical Ground: negative Charging system: alternator Battery volts: 12
