| Production |
| Manufacturer: | CaseIH
|
| Type: | Utility tractor
|
| Factory: | Doncaster, England
|
| Original price: | $32,000 (1997)
|
| CaseIH 4240 Power |
| Engine (gross): | 104 hp
77.6 kW
|
| Engine (net): | 99 hp
73.8 kW
|
| PTO (claimed): | 85 hp
63.4 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD (optional)
|
| Differential lock: | mechanical (ROPS)
|
| | electro-hydraulic (cab)
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Two-post ROPS. Cab optional.
|
| Transmissions: | 8-speed synchromesh
|
| | 8-speed shuttle
|
| | 16-speed partial power shift
|
| | 16-speed synchromesh creeper
|
| Photos |

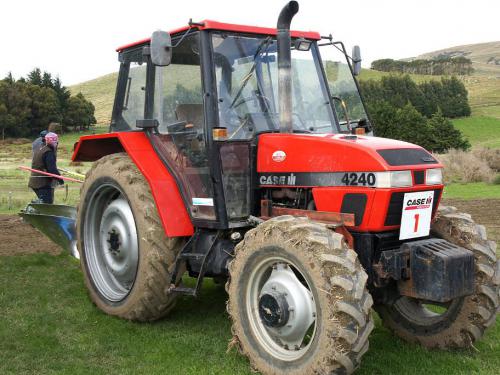

| | CaseIH 4240 photos... |
| Capacity |
| Fuel: | 20 gal
75.7 L (ROPS)
|
| | 29.6 gal
112.0 L (cab)
|
| Hydraulic system: | 9 gal
34.1 L (2WD)
|
| | 9.7 gal
36.7 L (cab)
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 9 gal
34.1 L (2WD)
|
| | 9.7 gal
36.7 L (cab)
|
| Pressure: | 2500 psi
172.4 bar
|
| Valves: | 0 to 3
|
| Total flow: | 16.1 gpm
60.9 lpm
|
| | 18.4 gpm
69.6 lpm (optional)
|
| Tractor hitch |
| Rear Type: | II
|
| Control: | draft and position control
|
| Rear lift: | 3,665 lbs
1662 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | hydraulic wet disc
|
| Rear RPM: | 540
|
| | 540/1000 (optional)
|
| Dimensions & Tires |
| Wheelbase: | 88.7 inches
225 cm (2WD)
|
| | 88 inches
223 cm (4WD)
|
| Weight: | 6687 to 7395 pounds
|
| Front tire: | 7.50-16
|
| Rear tire: | 16.9-28 (2WD)
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 45
|
| | 65 (cab, ROPS opt.)
|
| Battery CCA: | 650
|
| | 810 (optional)
|
| Battery volts: | 12
|
|
