| Production |
| Manufacturer: | CaseIH
|
| Type: | Row-Crop tractor
|
| Factory: | Racine, Wisconsin, USA
|
| Original price: | $76,000 (1993)
|
| CaseIH 7120 Power |
| PTO (claimed): | 150 hp
111.9 kW
|
| Drawbar (tested): | 135.55 hp
101.1 kW
|
| PTO (tested): | 155.38 hp
115.9 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD optional
|
| Steering: | hydrostatic power
|
| Brakes: | differential hydraulic wet disc
|
| Cab: | Silent Guardian II Cab standard with air-conditioning. Optional radio/tape deck.
|
| Transmissions: | 18-speed full power shift
|
| | 24-speed powershift with creeper
|
| Photos |

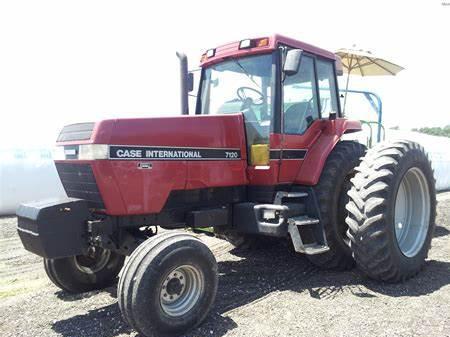

| | CaseIH 7120 photos... |
| Capacity |
| Fuel: | 78 gal
295.2 L
|
| | 95 gal
359.6 L (optional)
|
| Hydraulic system: | 50.5 gal
191.1 L
|
| Hydraulics |
| Type: | closed center pressure flow compensated (PFC)
|
| Capacity: | 50.5 gal
191.1 L
|
| Pressure: | 2600 psi
179.3 bar
|
| Valves: | 2 to 4
|
| Pump flow: | 22 gpm
83.3 lpm
|
| Total flow: | 29 gpm
109.8 lpm
|
| Tractor hitch |
| Rear Type: | III/IIIN
|
| Control: | electronic lower link
|
| Rear lift (at 24"/610mm): | 8,300 lbs
3764 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | wet disc
|
| Rear RPM: | 1000 (1.375)
|
| | 540/1000 (1.375)
|
| Engine RPM: | 1000@2200
|
| Dimensions & Tires |
| Wheelbase: | 118.3 inches
300 cm
|
| Weight: | 15920 to 17220 pounds
|
| Front tire: | 11.00-16
|
| Rear tire: | 18.4R38 (2WD)
|
| Full dimensions and tires ... |
| 7120 Serial Numbers |
| Location: | On the floor, inside the tractor's cab.
|
| 1987: | 9949001
|
| 1988: | JJA0001501
|
| 1989: | JJA0008528
|
| 1990: | JJA0018838
|
| 1991: | JJA0030160
|
| 1992: | JJA0039300
|
| 1993: | JJA0046350
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 110
|
| Batteries: | 2
|
| Battery CCA: | 950
|
| Battery volts: | 12
|
|
