Navigation: Home > CaseIH > 5240

CaseIH 5240 Tractors

CaseIH 5240
Power: 111 hp[P]
Date of manufacture :
1992 - 1997
Production
Manufacturer:CaseIH
Original price:$42,300 (1997 )
CaseIH 5240 Power
PTO (claimed):100 hp
74.6 kW
CaseIH 5240 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Differential lock:electro-hydraulic rear
Steering:power
Brakes:hydraulic wet disc
Cab:Two-post fixed ROPS. Cab optional with air-conditioning.
Transmissions:16-speed synchronized
 16-speed 4-speed power shift

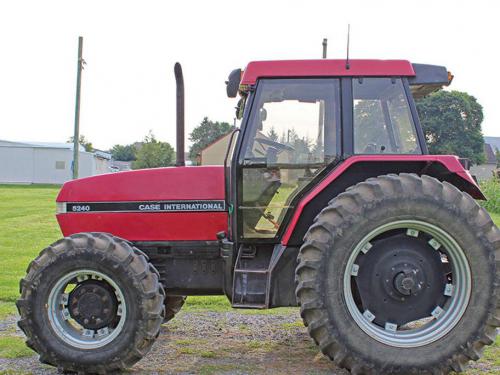

Photos
CaseIH 5240 photos...
Hydraulics
Type:closed center pressure-flow compensated
Pressure:2600 psi
179.3 bar
Valves:1 to 3
Pump flow:20 gpm
75.7 lpm
Tractor hitch
Rear Type:II
Control:lower-link draft sensing
Rear lift:7700 lbs
3492 kg
Front Hitch:II*Optional
Front lift (at 24"/610mm):5200 lbs
2358 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:electro-hydraulic wet disc
Rear RPM:540/1000
Dimensions & Tires
2WD Wheelbase:103.7 inches
263 cm
4WD Wheelbase:101.8 inches
258 cm
Weight:9787 to 11067 pounds
Front tire:10.00-16
Rear tire:18.4-38
Full dimensions and tires ...
5240 Serial Numbers
Location:Inside cab on left
1992:JJF1015072
1993:JJF1023186
1994:JJF1029431
1995:JJF1036193
1996:JJF1047028
1997:JJF1059169

how to read serial numbers...

Electrical
Ground:negative
Charging system:alternator
Charging amps:65
 95*Optional
Batteries:1
 2*Optional
Battery volts:12
