CaseIH 5230 Tractors

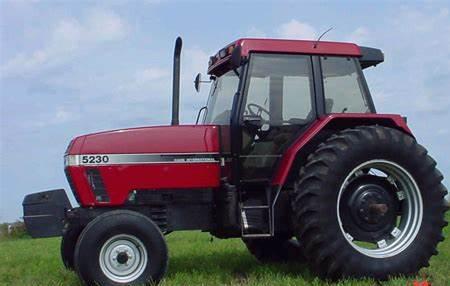

CaseIH 5230
Power: 100 hp[P]
Date of manufacture :
1992 - 1997
Production
Manufacturer:CaseIH
Type:Utility tractor
Original price:$39,000 (1997 )
CaseIH 5230 Power
PTO (claimed):90 hp
67.1 kW
CaseIH 5230 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Differential lock:electro-hydraulic rear
Steering:power
Brakes:hydraulic wet disc
Cab:Two-post fixed ROPS. Cab optional with air-conditioning.
Transmissions:16-speed synchronized
 16-speed 4-speed power shift
Photos
CaseIH 5230 photos...
Hydraulics
Type:closed center pressure-flow compensated
Pressure:2600 psi
179.3 bar
Valves:1 to 3
Pump flow:20 gpm
75.7 lpm
Tractor hitch
Rear Type:II
Control:lower-link draft sensing
Rear lift:7700 lbs
3492 kg
Front Hitch:II*Optional
Front lift (at 24"/610mm):5200 lbs
2358 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:electro-hydraulic wet disc
Rear RPM:540/1000
Dimensions & Tires
2WD Wheelbase:103.7 inches
263 cm
4WD Wheelbase:101.8 inches
258 cm
Weight:9567 to 10626 pounds
Front tire:7.50-18
Rear tire:16.9-38
Full dimensions and tires ...
5230 Serial Numbers
Location:Inside cab on left
1992:JJF1015072
1993:JJF1023186
1994:JJF1029431
1995:JJF1036193
1996:JJF1047028
1997:JJF1059169

how to read serial numbers...

External Links
:
Electrical
Ground:negative
Charging system:alternator
Charging amps:65
 95*Optional
Batteries:1
 2*Optional
Battery volts:12
