Navigation: Home > CaseIH > 885

CaseIH 885 Tractors

CaseIH 885
Power: 84 hp
Date of manufacture :
1985 - 1990
Production
Manufacturer:CaseIH
Type:Utility tractor
Factory:Doncaster, England
Original price:$25,700 (1990 )
CaseIH 885 Power
Engine (gross):84 hp
62.6 kW
Engine (net):79 hp
58.9 kW
PTO (claimed):72 hp
53.7 kW
CaseIH 885 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Final drives:planetary
Steering:power
Brakes:independent hydraulic wet disc
Cab:ROPS available. Cab with heat and air-conditioning optional.
Transmissions:8-speed synchro
 16-speed two-speed power shift
 8-speed shuttle

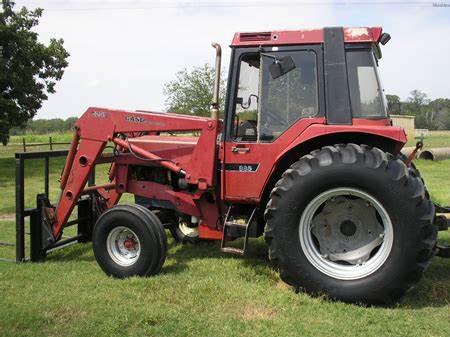

Photos
CaseIH 885 photos...
Capacity
Fuel:20 gal
75.7 L
2WD Hydraulic system:9 gal
34.1 L
4WD Hydraulic system:9.65 gal
36.5 L
Hydraulics
Type:open center gear pump
2WD Capacity:9 gal
34.1 L
4WD Capacity:9.65 gal
36.5 L
Pressure:2500 psi
172.4 bar
Valves:1 to 3
Pump flow:15.8 gpm
59.8 lpm
Total flow:15.8 gpm
59.8 lpm
 18.6 gpm
70.4 lpm *Optional
Steering flow:2.5 gpm
9.5 lpm
Tractor hitch
Rear Type:II
Rear lift (at 24"/610mm):3260 lbs
1478 kg
Power Take-off (PTO)
Rear PTO:independent dual shaft
Rear RPM:540/1000
Dimensions & Tires
2WD Wheelbase:88 inches
223 cm
4WD Wheelbase:85.2 inches
216 cm
Weight:6065 to 7849 pounds
Front tire:7.50-18
Rear tire:18.4-30
Full dimensions and tires ...
885 Serial Numbers
Location:Serial number plate on the front-right of the tractor.
1985:15000
1986:18000
1987:19138
1988:22668
1989:27254
1990:30427

how to read serial numbers...

Electrical
Ground:negative
Charging system:Lucas alternator
ROPS Charging amps:45
Cab Charging amps:65
Battery volts:12
Battery AH:93
