CaseIH 895 Tractors

CaseIH 895
Power: 84 hp
Date of manufacture :
1991 - 1994
Production
Manufacturer:CaseIH
Type:Utility tractor
Factory:Doncaster, England
Original price:$27,500 (1994 )
CaseIH 895 Power
Engine (gross):84 hp
62.6 kW
Engine (net):79 hp
58.9 kW
PTO (claimed):72 hp
53.7 kW
CaseIH 895 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:power
Brakes:hydraulic wet disc
Cab:Two-post ROPS. Cab optional with air-conditioning.
Transmissions:8-speed partially synchronized
 16-speed partial power shift
 8-speed synchronized shuttle
 16-speed creeper
Photos

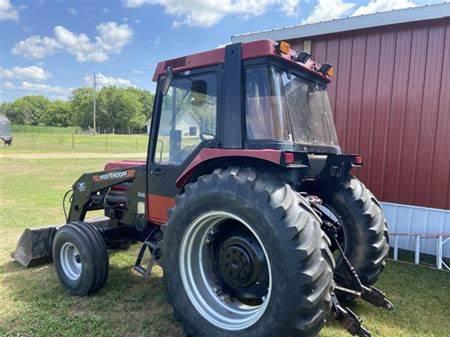

CaseIH 895 photos...
Capacity
ROPS Fuel:20 gal
75.7 L
Cab Fuel:29.5 gal
111.7 L
Hydraulic system:9 gal
34.1 L
Hydraulics
Type:open center
Capacity:9 gal
34.1 L
Valves:1
Pump flow:15.8 gpm
59.8 lpm
Tractor hitch
Rear Type:II
Rear lift:3665 lbs
1662 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540
 540/1000
Dimensions & Tires
Wheelbase:88.7 inches
225 cm
Weight:6065 to 8023 pounds
Front tire:7.50-16
Rear tire:16.9-24
Electrical
Ground:negative
Charging system:alternator
Battery volts:12
