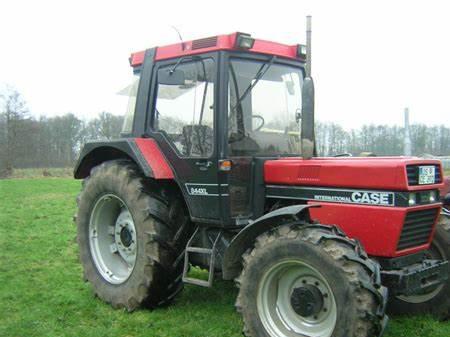

CaseIH 844 XL Tractors

CaseIH 844 XL
Power: 80 hp
Date of manufacture :
1985 - 1987
Production
Manufacturer:CaseIH
Type:Utility tractor
Factory:Neuss, Germany
CaseIH 844 XL Power
Engine:80 hp
59.7 kW
CaseIH 844 XL Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:wet disc
Cab:Cab standard with heat.
Transmissions:16-speed
 8-speed
Hydraulics
Pressure:2538 psi
175.0 bar
Valves:up to 3
Pump flow:8.7 gpm
32.9 lpm
Tractor hitch
Rear Type:II
Control:lower link draft sensing
Rear lift:6947 lbs
3151 kg
 8835 lbs
4007 kg (optional)
Power Take-off (PTO)
Rear RPM:540
 540/1000 (optional 4WD)
Dimensions & Tires
2WD Wheelbase:94.1 inches
239 cm
4WD Wheelbase:92.5 inches
234 cm
Weight:8069 to 8752 pounds
Front tire:7.50-18
Rear tire:16.9R34 (2WD)
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:55
Battery volts:12
