Navigation: Home > CaseIH > C48

CaseIH C48 Tractors

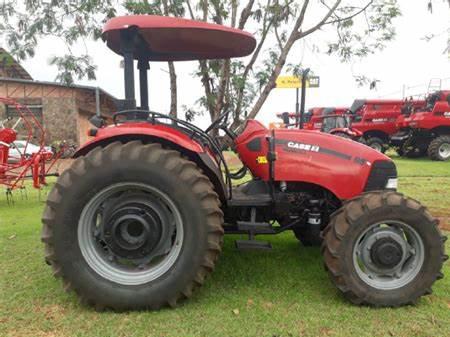

CaseIH C48
Power: 48 hp
Date of manufacture :
1992 - 1996
Production
Distributor:CaseIH
Manufacturer:Steyr
CaseIH C48 Power
Engine:48 hp
35.8 kW
CaseIH C48 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD optional
Steering:hydrostatic power
Brakes:disc
Transmission:16-speed
Hydraulics
Total flow:7.7 gpm
29.1 lpm
Tractor hitch
Rear lift:4410 lbs
2000 kg
Power Take-off (PTO)
Rear RPM:540/1000
Dimensions & Tires
Wheelbase:78.0 inches
198 cm
Weight:5,248 lbs
2380 kg
Front tire:7.50-16
Rear tire:12.4-32
Full dimensions and tires ...
