| Production |
| Manufacturer: | CaseIH
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Factory: | Fargo, North Dakota, USA
|
| Original price: | $160,000 (1999 )
|
| CaseIH 9390 Power |
| Engine (gross): | 425 hp
316.9 kW
|
| PTO (claimed): | 383 hp
285.6 kW
|
| Mechanical |
| Chassis: | 4x4 articulated 4WD
|
| Steering: | articulated power
|
| Brakes: | hydraulic disc
|
| Cab: | Cab standard with air-conditioning.
|
| Transmissions: | 12-speed full powershift
|
| | 12-speed
|
| | 24-speed
|
| Photos |

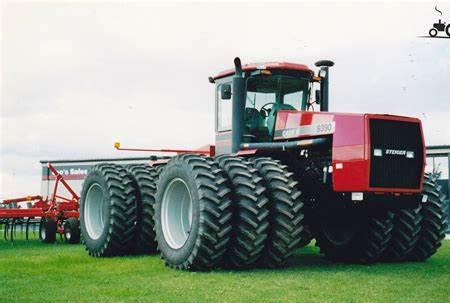

| | CaseIH 9390 photos... |
| Hydraulics |
| Type: | closed center
|
| Pressure: | 2900 psi
200.0 bar
|
| Valves: | 4
|
| Pump flow: | 30 gpm
113.6 lpm *Two separate 30 GPM sections.
|
| Total flow: | 60 gpm
227.1 lpm
|
| Tractor hitch |
| Rear Type: | IV
|
| Rear lift (at 24"/610mm): | 17000 lbs
7711 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000
|
| Dimensions & Tires |
| Wheelbase: | 144 inches
365 cm
|
| Weight: | 32500 lbs
14742 kg
|
| Front tire: | 20.8R-42
|
| Rear tire: | 20.8R-42
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 125
|
| Batteries: | 3
|
| Battery CCA: | 625
|
| Battery volts: | 12
|
|
