| Production |
| Manufacturer: | CaseIH
|
| Type: | Articulated Crawler tractor
|
| Factory: | Fargo, North Dakota, USA
|
| Original price: | $207,000 (1999 )
|
| Variants |
| 9380: | wheeled tractor
|
| 9380QT: | Quadtrac crawler
|
| CaseIH 9380QT Power |
| Engine: | 400 hp
298.3 kW
|
| PTO (claimed): | 356 hp
265.5 kW
|
| Mechanical |
| Chassis: | crawler
|
| Steering: | articulated power
|
| Brakes: | wet disc
|
| Cab: | Cab standard with air-conditioning.
|
| Transmission: | 12-speed full power shift
|
| Photos |

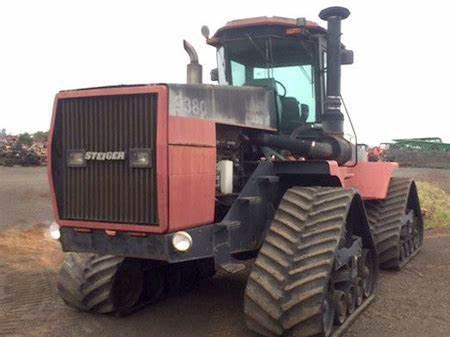

| | CaseIH 9380QT photos... |
| Hydraulics |
| Type: | closed center
|
| Pressure: | 2900 psi
200.0 bar
|
| Valves: | 4
|
| Pump flow: | 27 gpm
102.2 lpm
|
| Steering flow: | 31 gpm
117.3 lpm
|
| Tractor hitch |
| Rear Type: | IV
|
| Rear lift (at 24"/610mm): | 17000 lbs
7711 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 1000
|
| Dimensions & Tracks |
| Wheelbase: | 148 inches
375 cm
|
| Weight: | 44000 lbs
19958 kg
|
| 30 in track |
| Full dimensions and tracks ... |
| 9380QT Serial Numbers |
| Location: | Left-side front fender next to steps.
|
photo of 9380QT serial number
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 125
|
| Batteries: | 3
|
| Battery CCA: | 625
|
| Battery volts: | 12
|
|
