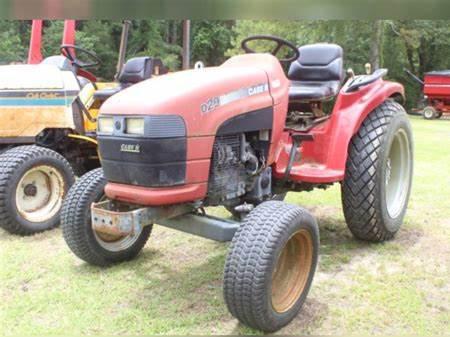

CaseIH D29 Tractors

CaseIH D29
Power: 29 hp
Date of manufacture :
2001 - 2003
Production
Manufacturer:CaseIH
Variants
D29:gear
DX29:hydrostatic
CaseIH D29 Power
Engine (gross):29 hp
21.6 kW
PTO (claimed):25.1 hp
18.7 kW
CaseIH D29 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD (optional)
Cab:Two-post ROPS. Foldable ROPS optional.
Transmission:9-speed gear
Hydraulics
Total flow:6.6 gpm
25.0 lpm
Tractor hitch
Rear Type:I
Rear lift (at 24"/610mm):1,635 lbs
741 kg
Power Take-off (PTO)
Rear PTO:transmission
Rear RPM:540
Mid PTO:optional
Mid RPM:2000
Dimensions & Tires
Front tire:5.50x16
Rear tire:11.2x24
Electrical
Charging system:alternator
Charging amps:40
Battery CCA:420
Battery volts:12
