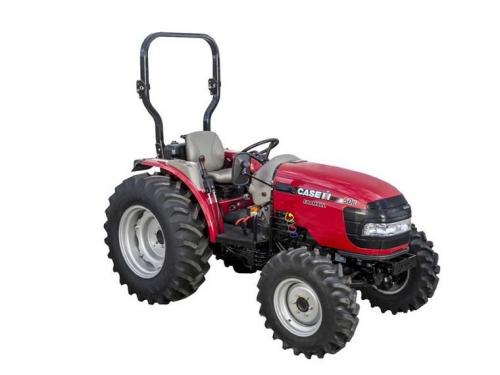

CaseIH Farmall 50B Tractors
 |
|
Power: 47 hp
Date of manufacture : 2012 - 2014 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Compact Utility tractor
|
| Original price: | $23,136 (2012 shuttle )
|
| Original price: | $24,735 (2012 hydro )
|
| CaseIH Farmall 50B Power |
| Engine (gross): | 47 hp
35.0 kW
|
| Gear PTO (claimed): | 39 hp
29.1 kW
|
| Hydro PTO (claimed): | 37 hp
27.6 kW
|
| CaseIH Farmall 50B Engine |
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Differential lock: | mechanical rear
|
| Steering: | hydrostatic power
|
| Brakes: | wet disc
|
| Cab: | Two-post foldable ROPS.
|
| Transmissions: | 16-speed partially synchronized
|
| | hydrostatic
|
| Hydraulics |
| Type: | open center
|
| Pump flow: | 8.2 gpm
31.0 lpm
|
| Gear Steering flow: | 4.1 gpm
15.5 lpm
|
| Hydro Steering flow: | 5.5 gpm
20.8 lpm
|
| Tractor hitch |
| Rear Type: | 1
|
| Control: | position control
|
| Rear lift (at ends): | 2,756 lbs
1250 kg
|
| Rear lift (at 24"/610mm): | 2,469 lbs
1119 kg
|
| Drawbar: | two-position swinging drawbar
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro-hydraulic
|
| Rear RPM: | 540
|
| Dimensions & Tires |
| Wheelbase: | 69 inches
175 cm
|
| Weight: | 3,800 lbs
1723 kg
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 50
|
| Battery CCA: | 660
|
| Battery volts: | 12
|
| Battery AH: | 80
|
|
