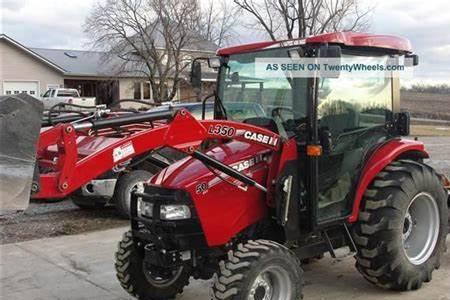

CaseIH Farmall 50 Tractors
 |
|
Power: 50 hp
Date of manufacture : 2008 - 2011 |
| Production |
| Distributor: | CaseIH
|
| Manufacturer: | Shibaura
|
| Type: | Compact Utility tractor
|
| Factory: | Dublin, Georgia, USA
|
| Original price: | $29,500 (2011 shuttle ROPS )
|
| Original price: | $40,856 (2011 CVT cab )
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | hydrostatic power
|
| Brakes: | wet disc
|
| Cab: | Two-post foldable ROPS. Cab with air-conditioning standard on CVT-equipped tractor.
|
| Transmissions: | 12-speed
|
| | continuously variable transmission
|
| Hydraulics |
| Pump flow: | 9.8 gpm
37.1 lpm
|
| Total flow: | 14.9 gpm
56.4 lpm
|
| Steering flow: | 5.1 gpm
19.3 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Control: | position control
|
| Rear lift (at 24"/610mm): | 2,330 lbs
1056 kg
|
| | 2,800 lbs
1270 kg (CVT)
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540
|
| Mid PTO: | optional with CVT
|
| Mid RPM: | 2000
|
| Dimensions & Tires |
| Wheelbase: | 73.5 inches
186 cm
|
| Weight: | 3522 to 4136 pounds
|
| Front tire: | 8-16
|
| Rear tire: | 14.9-24
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 40 (ROPS)
|
| | 55 (cab)
|
| | 75 (cab optional)
|
| Battery CCA: | 600
|
| Battery volts: | 12
|
|
