Navigation: Home > CaseIH > Farmall 50A

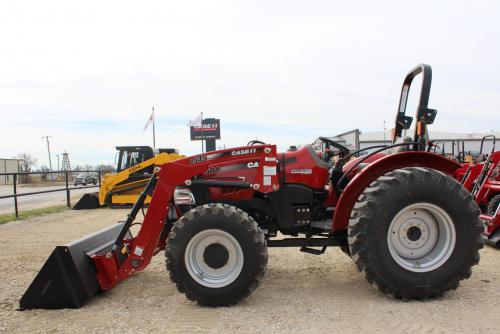

CaseIH Farmall 50A Tractors
 |
|
Power: 50 hp
Date of manufacture : 0000 - 0000 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Utility tractor
|
| Factory: | India
|
| CaseIH Farmall 50A Power |
| Engine (gross): | 50 hp
37.3 kW
|
| PTO (claimed): | 46 hp
34.3 kW
|
| PTO (tested): | 46.39 hp
34.6 kW
|
| CaseIH Farmall 50A Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Final drives: | planetary
|
| Differential lock: | mechanical rear
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Two-post folding ROPS.
|
| Transmission: | 8-speed mechanical shuttle
|
| Hydraulics |
| Type: | open center
|
| Rear valves: | 1 or 2
|
| Mid valves: | 0 or 2
|
| Pump flow: | 11.9 gpm
45.0 lpm
|
| Steering flow: | 5.5 gpm
20.8 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Rear lift (at 24"/610mm): | 2701 lbs
1225 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540 (1.375)
|
| Engine RPM: | 540@2575
540E@2016
|
| Dimensions & Tires |
| 2WD Wheelbase: | 96.4 inches
244 cm
|
| 4WD Wheelbase: | 97.6 inches
247 cm
|
| Weight: | 4442 to 5060 pounds
|
| Front tire: | 7.5x16
|
| 2WD Rear tire: | 13.6x28
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 75
|
| Battery volts: | 12
|
|
