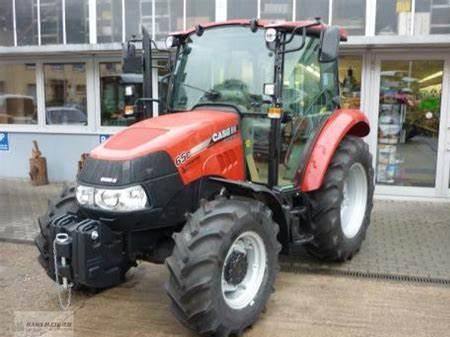

CaseIH Farmall 65C Tractors
 |
|
Power: 64 hp
Date of manufacture : 0000 - 0000 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Utility tractor
|
| Factory: | Jesi, Italy
|
| CaseIH Farmall 65C Power |
| Engine: | 64 hp
47.7 kW
|
| PTO (claimed): | 50 hp
37.3 kW
|
| Drawbar (tested): | 50.9 hp
38.0 kW
|
| PTO (tested): | 59.0 hp
44.0 kW
|
| CaseIH Farmall 65C Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Straddle deck platform with ROPS
|
| | Cab optional.
|
| Transmissions: | 16-speed mechanical shuttle
|
| | 16-speed power shuttle
|
| Hydraulics |
| Type: | open center
|
| Rear valves: | 1 to 2
|
| Mid valves: | 0 to 2
|
| Pump flow: | 12.8 gpm
48.4 lpm
|
| Total flow: | 20.2 gpm
76.5 lpm
|
| Steering flow: | 7.4 gpm
28.0 lpm
|
| Tractor hitch |
| Rear Type: | II/I
|
| Rear lift (at 24"/610mm): | 3,960 lbs
1796 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540
|
| | 540/1000 (optional)
|
| Dimensions & Tires |
| Wheelbase: | 85.6 inches
217 cm (2WD)
|
| | 82.6 inches
209 cm (4WD)
|
| Weight: | 5776 to 6768 pounds
|
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 120
|
| Battery CCA: | 730
|
| Battery volts: | 12
|
|
