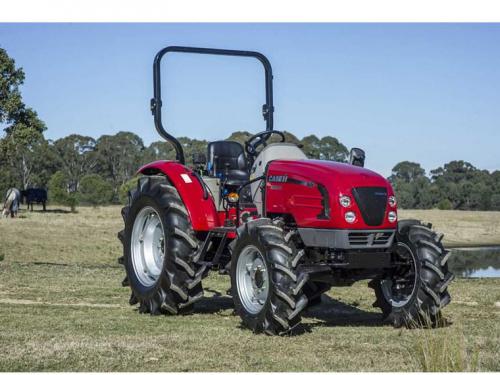

CaseIH Farmall 60 Tractors
 |
|
Power: 60 hp
Date of manufacture : 2008 - 2018 |
| Production |
| Distributor: | CaseIH
|
| Manufacturer: | Shibaura
|
| Type: | Farm/Agricultural tractor
|
| CaseIH Farmall 60 Power |
| Engine (gross): | 60 hp
44.7 kW
|
| PTO (claimed): | 50 hp
37.3 kW (Power Shuttle)
|
| | 51 hp
38.0 kW (synchro)
|
| PTO (tested): | 51.57 hp
38.5 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | hydrostatic power
|
| Brakes: | wet disc
|
| Cab: | ROPS
|
| Transmission: | 12-speed
|
| Photos |
| | CaseIH Farmall 60 photos... |
| Hydraulics |
| Type: | open center
|
| Pressure: | 2489 psi
171.6 bar
|
| Valves: | 0 to 3
|
| Pump flow: | 12 gpm
45.4 lpm
|
| Total flow: | 17.53 gpm
66.4 lpm
|
| Steering flow: | 5.5 gpm
20.8 lpm
|
| Tractor hitch |
| Rear Type: | 1/2
|
| Rear lift (at 24"/610mm): | 3,465 lbs
1571 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540
|
| Dimensions & Tires |
| Wheelbase: | 74.8 inches
189 cm
|
| Weight: | 4209 to 4238 pounds
|
| Front tire: | 8x16
|
| Rear tire: | 14.9x24
|
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 55
|
| Battery CCA: | 750
|
| Battery volts: | 12
|
|
