Navigation: Home > CaseIH > Farmall 55A

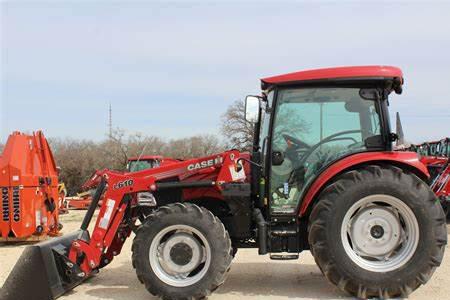

CaseIH Farmall 55A Tractors
 |
|
Power: 54 hp
Date of manufacture : 0000 - 0000 |
| Production |
| Manufacturer: | CaseIH
|
| Type: | Utility tractor
|
| CaseIH Farmall 55A Power |
| Engine: | 54 hp
40.3 kW
|
| PTO (claimed): | 43 hp
32.1 kW
|
| CaseIH Farmall 55A Engine |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Final drives: | inboard planetary
|
| Differential lock: | mechanical rear
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Two-post folding ROPS. Cab optional with air-conditoning.
|
| Transmissions: | 8-speed mechanical shuttle
|
| | 12-speed power shuttle
|
| | 20-speed creeper
|
| Hydraulics |
| Type: | open center
|
| Rear valves: | 2 or 3
|
| Pump flow: | 12.6 gpm
47.7 lpm
|
| Tractor hitch |
| Rear Type: | II/I
|
| Control: | position and draft control
|
| Rear lift (at ends): | 5952 lbs
2699 kg
|
| | 6614 lbs
3000 kg *Optional
|
| Rear lift (at 24"/610mm): | 4299 lbs
1950 kg
|
| | 4740 lbs
2150 kg *Optional
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540 (1.375)
|
| Engine RPM: | 540@1957
540E@1592
|
| Dimensions & Tires |
| 2WD Wheelbase: | 81.2 inches
206 cm
|
| 4WD Wheelbase: | 81.8 inches
207 cm
|
| Weight: | 5622 to 6834 pounds
|
| Front tire: | 9.5L-15
|
| 2WD Rear tire: | 16.9R28
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 120
|
| Battery volts: | 12
|
|
