CaseIH Farmall DX29 Tractors

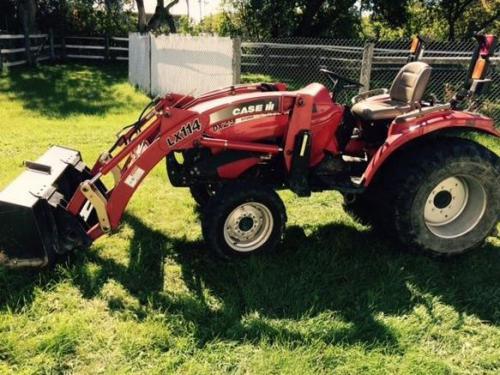

CaseIH Farmall DX29
Power: 29 hp
Date of manufacture :
2004 - 2006
Production
Manufacturer:CaseIH
Type:Compact Utility tractor
CaseIH Farmall DX29 Power
Engine:29 hp
21.6 kW
Hydro PTO (claimed):23.6 hp
17.6 kW
Gear PTO (claimed):25 hp
18.6 kW
CaseIH Farmall DX29 Engine
Mechanical
Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:wet disc
Cab:Two-post folding ROPS.
Transmissions:hydrostatic
 9-speed gear
Hydraulics
Pump flow:12.7 gpm
48.1 lpm
Tractor hitch
Rear Type:I
Rear lift (at 24"/610mm):1635 lbs
741 kg
Power Take-off (PTO)
Rear RPM:540
Dimensions & Tires
Wheelbase:63 inches
160 cm
Weight:2440 to 2474 pounds
