CaseIH Farmall DX18E Tractors
|
|
Power: 18 hp
Date of manufacture : 2004 - 2008 |
Production |
Manufacturer: | CaseIH
|
Type: | Sub-Compact Utility tractor
|
CaseIH Farmall DX18E Power |
Engine: | 18 hp 13.4 kW
|
PTO (claimed): | 13.7 hp 10.2 kW
|
CaseIH Farmall DX18E Engine |
Mechanical |
Chassis: | 4x4 MFWD 4WD
|
Steering: | hydrostatic power
|
Cab: | Two-post ROPS. Canopy and soft cab optional.
|
Transmission: | hydrostatic
|
Photos |

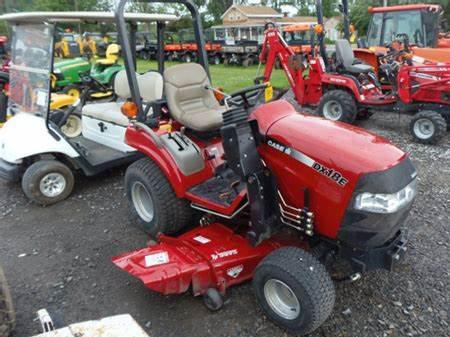

| CaseIH Farmall DX18E photos... |
Hydraulics |
Type: | open center
|
Total flow: | 5.5 gpm 20.8 lpm
|
Tractor hitch |
Rear Type: | I
|
Rear lift (at 24"/610mm): | 700 lbs 317 kg
|
Power Take-off (PTO) |
Rear PTO: | independent
|
Rear RPM: | 540
|
Mid PTO: | standard
|
Mid RPM: | 2200
|
Dimensions & Tires |
Wheelbase: | 55 inches 139 cm
|
Weight: | 1,314 lbs 596 kg
|
Electrical |
Ground: | negative
|
Battery volts: | 12
|
|
