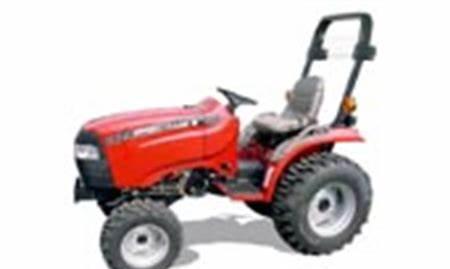

CaseIH Farmall DX21 Tractors
|
|
Power: 21 hp
Date of manufacture : 2004 - 0000 |
Production |
Manufacturer: | CaseIH
|
Type: | Compact Utility tractor
|
CaseIH Farmall DX21 Power |
Engine: | 21 hp 15.7 kW
|
Hydro PTO (claimed): | 16 hp 11.9 kW
|
Gear PTO (claimed): | 17 hp 12.7 kW
|
CaseIH Farmall DX21 Engine |
Mechanical |
Chassis: | 4x4 MFWD 4WD
|
Steering: | hydrostatic power
|
Brakes: | wet disc
|
Cab: | Two-post folding ROPS. Soft cab optional.
|
Transmissions: | 9-speed gear
|
| hydrostatic
|
Hydraulics |
Total flow: | 7.65 gpm 29.0 lpm
|
Tractor hitch |
Rear Type: | I
|
Rear lift (at 24"/610mm): | 1,265 lbs 573 kg
|
Power Take-off (PTO) |
Rear RPM: | 540
|
Mid RPM: | 2000
|
Dimensions & Tires |
Wheelbase: | 57.5 inches 146 cm
|
Weight: | 1495 to 1592 pounds
|
Electrical |
Ground: | negative
|
Battery volts: | 12
|
|
