CaseIH JX1090U Tractors

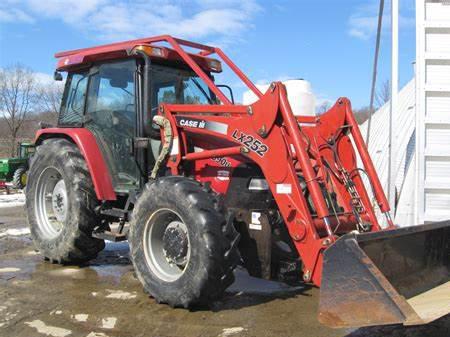

CaseIH JX1090U
Power: 90 hp
Date of manufacture :
2004 - 2008
Production
Manufacturer:CaseIH
Type:Utility tractor
Factory:Jesi, Italy
CaseIH JX1090U Power
Engine (gross):90 hp
67.1 kW
PTO (claimed):77 hp
57.4 kW
Drawbar (tested):62.1 hp
46.3 kW
PTO (tested):82.7 hp
61.7 kW
CaseIH JX1090U Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Differential lock:electro-hydraulic
Steering:power
Brakes:differential hydraulic wet disc
Cab:Flat-platform with two-post folding ROPS. Optional cab with air-conditioning.
Transmissions:12-speed synchronized shuttle
 24-speed partial power shift with synchronized shuttle
 24-speed partial power shift with power shuttle
 20-speed synchronized shuttle with creeper
Hydraulics
Type:open center
Valves:2 to 3
Pump flow:14.5 gpm
54.9 lpm
Total flow:20 gpm
75.7 lpm
Steering flow:5.5 gpm
20.8 lpm
Tractor hitch
Rear Type:II/I
Control:mechanical lower link
 electronic draft control optional with cab
Rear lift (at 24"/610mm):5745 lbs
2605 kg
 6445 lbs
2923 kg *Optional
Power Take-off (PTO)
Rear PTO:independent
Clutch:electro-hydraulic wet disc
Rear RPM:540/1000
Engine RPM:540@2200
1000@2380
Dimensions & Tires
2WD Wheelbase:92.2 inches
234 cm
4WD Wheelbase:91.1 inches
231 cm
Weight:6834 to 8895 pounds
Electrical
Ground:negative
Charging system:alternator
Charging amps:120
Battery CCA:960
Battery volts:12
