| Production |
| Manufacturer: | CaseIH
|
| Type: | Utility tractor
|
| Factory: | Jesi, Italy
|

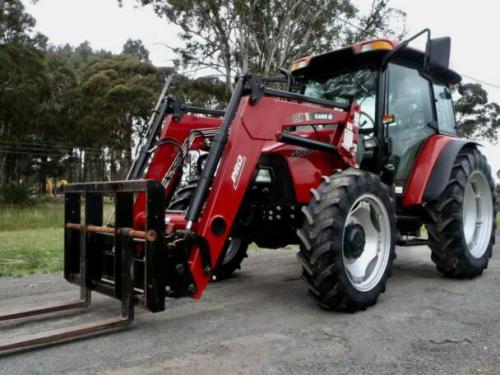

| CaseIH JX1080U Power |
| Engine (gross): | 80 hp
59.7 kW
|
| PTO (claimed): | 69 hp
51.5 kW
|
| Drawbar (tested): | 58.2 hp
43.4 kW
|
| PTO (tested): | 71.6 hp
53.4 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Differential lock: | electro-hydraulic
|
| Steering: | power
|
| Brakes: | differential hydraulic wet disc
|
| Cab: | Flat-platform with two-post folding ROPS. Optional cab with air-conditioning.
|
| Transmissions: | 12-speed synchronized shuttle
|
| | 24-speed partial power shift with synchronized shuttle
|
| | 24-speed partial power shift with power shuttle
|
| | 20-speed synchronized shuttle with creeper
|
| Hydraulics |
| Type: | open center
|
| Valves: | 2 to 3
|
| Pump flow: | 14.5 gpm
54.9 lpm
|
| Total flow: | 20 gpm
75.7 lpm
|
| Steering flow: | 5.5 gpm
20.8 lpm
|
| Tractor hitch |
| Rear Type: | II/I
|
| Control: | mechanical lower link
|
| | electronic draft control optional with cab
|
| Rear lift (at 24"/610mm): | 5,745 lbs
2605 kg
|
| | 6,445 lbs
2923 kg *Optional
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro-hydraulic wet disc
|
| Rear RPM: | 540/1000
|
| Engine RPM: | 540@2200
1000@2380
|
| Dimensions & Tires |
| 2WD Wheelbase: | 92.2 inches
234 cm
|
| 4WD Wheelbase: | 91.1 inches
231 cm
|
| Weight: | 6393 to 8875 pounds
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 120
|
| Battery CCA: | 960
|
| Battery volts: | 12
|
|
