| Production |
| Distributor: | CaseIH
|
| Manufacturer: | Turk Tractor
|
| Type: | Utility tractor
|
| Factory: | Ankara, Turkey
|

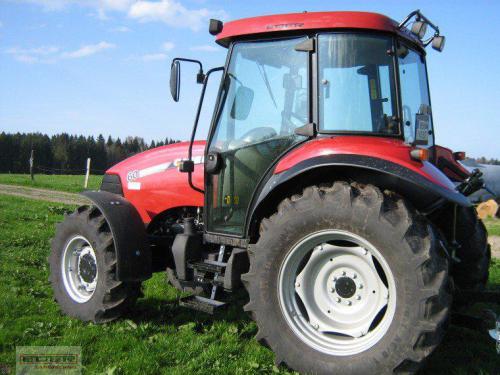

| CaseIH JX60 Power |
| Engine (gross): | 55 hp
41.0 kW
|
| PTO (claimed): | 45 hp
33.6 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Differential lock: | mechanical rear
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic wet disc (USA)
|
| | mechanical wet disc
|
| Cab: | Two-post folding ROPS. Cab optional with air-conditioning.
|
| Transmissions: | 12-speed mechanical shuttle
|
| | 20-speed mechanical shuttle with creeper
|
| Hydraulics |
| Type: | open center
|
| Pressure: | 2755 psi
190.0 bar
|
| Valves: | 1 to 3, 1 mid optional
|
| Pump flow: | 10.6 gpm
40.1 lpm
|
| | 13.6 gpm
51.5 lpm (optional, standard in USA)
|
| Total flow: | 21.7 gpm
82.1 lpm
|
| Steering flow: | 8.1 gpm
30.7 lpm
|
| Tractor hitch |
| Rear Type: | II/I
|
| Control: | mechanical draft sensing
|
| Rear lift (at 24"/610mm): | 4,010 lbs
1818 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | mechanical dry disc
|
| Rear RPM: | 540
|
| | 540/540E
|
| | 540/1000
|
| Dimensions & Tires |
| Wheelbase: | 86 inches
218 cm (2WD)
|
| | 84 inches
213 cm (4WD)
|
| Weight: | 5152 to 6365 pounds
|
| Full dimensions and tires ... |
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 85
|
| Battery volts: | 12
|
|
