CaseIH JX75 Tractors

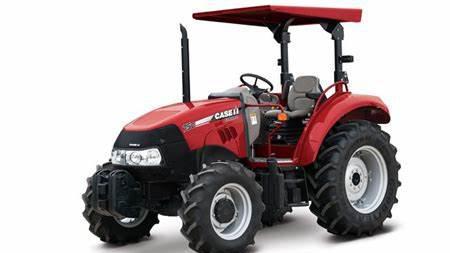

CaseIH JX75
Power: 75 hp
Date of manufacture :
2002 - 2006
Production
Distributor:CaseIH
Manufacturer:Turk Tractor
Type:Utility tractor
Factory:Turkey
CaseIH JX75 Power
Engine (gross):75 hp
55.9 kW
PTO (claimed):60 hp
44.7 kW
Drawbar (tested):49.5 hp
36.9 kW
PTO (tested):60.6 hp
45.2 kW
CaseIH JX75 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Differential lock:mechanical rear
Steering:hydrostatic power
Brakes:independent wet disc
Cab:Two-post ROPS. Cab optional.
Transmissions:12-speed mechanical shuttle
 20-speed creeper
Hydraulics
Type:open center
Valves:3
Pump flow:13.6 gpm
51.5 lpm
Tractor hitch
Rear Type:II
Rear lift:7718 lbs
3500 kg *Advertised. 3440 lbs actual lift during testing
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/540E
 540/1000*Optional
Dimensions & Tires
Wheelbase:88.5 inches
224 cm
Weight:6205 to 6775 pounds
JX75 Serial Numbers
2003:HFJ000001

how to read serial numbers...

Electrical
Ground:negative
Battery volts:12
