CaseIH JX65 Tractors

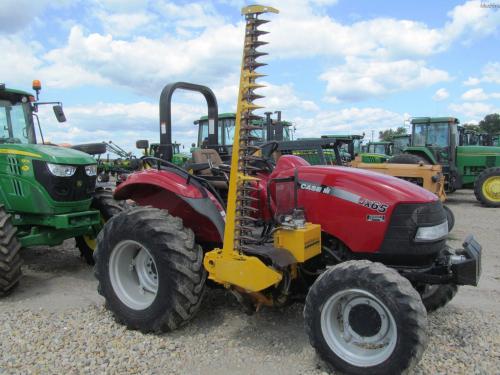

CaseIH JX65
Power: 65 hp
Date of manufacture :
2002 - 2006
Production
Distributor:CaseIH
Manufacturer:Turk Tractor
Type:Utility tractor
Factory:Turkey
CaseIH JX65 Power
Engine (gross):65 hp
48.5 kW
PTO (claimed):50 hp
37.3 kW
Drawbar (tested):41.5 hp
30.9 kW
PTO (tested):50.7 hp
37.8 kW
CaseIH JX65 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Differential lock:mechanical rear
Steering:hydrostatic power
Brakes:independent wet disc
Cab:Two-post ROPS.
Transmissions:12-speed mechanical shuttle
 20-speed creeper
Hydraulics
Type:open center
Valves:3
Pump flow:13.6 gpm
51.5 lpm
Tractor hitch
Rear Type:II/I
Rear lift:6615 lbs
3000 kg *Advertised. 3620 lbs actual lift during testing
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/540E
 540/1000*Optional
Dimensions & Tires
Wheelbase:83.4 inches
211 cm
Weight:6010 to 6130 pounds
JX65 Serial Numbers
2003:HFJ000001

how to read serial numbers...

Electrical
Ground:negative
Battery volts:12
