CaseIH JXU 85 Tractors

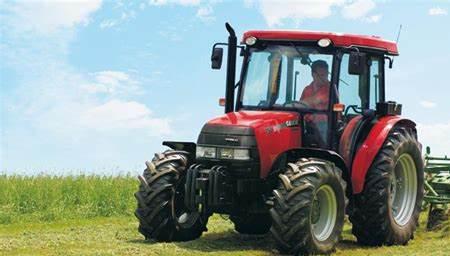

CaseIH JXU 85
Power: 84 hp
Date of manufacture :
2008 - 2012
Production
Manufacturer:CaseIH
Type:Utility tractor
CaseIH JXU 85 Power
Engine (gross):84.5 hp
63.0 kW
CaseIH JXU 85 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Differential lock:Electro-hydraulic rear and limited slip front. Electro-hydraulic front optional.
Steering:power
Brakes:wet disc
Trailer brakes:hydraulic*Optional
 pneumatic*Optional
Cab:Two-post folding ROPS. Cab optional.
Transmissions:12-speed mechanical shuttle
 24-speed two-speed power shift
 12-speed power shuttle
Hydraulics
Rear valves:3*Optional
Mid valves:2*Optional
Pump flow:16.1 gpm
60.9 lpm
Steering flow:9.5 gpm
36.0 lpm
Tractor hitch
Rear lift:8598 lbs
3900 kg
 10803 lbs
4900 kg *Optional
Front lift:5512 lbs
2500 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:electro-hydraulic
Rear RPM:540/540E/1000
Front PTO:independent
Front RPM:1000
Dimensions & Tires
2WD Wheelbase:92.2 inches
234 cm
4WD Wheelbase:92.5 inches
234 cm
Weight:8929 lbs
4050 kg
Front tire:9.00-16
2WD Rear tire:18.4R30
Full dimensions and tires ...
Electrical
Ground:negative
Battery volts:12
