CaseIH JXU 95 Tractors

CaseIH JXU 95
Power: 95 hp
Date of manufacture :
2008 - 2012
Production
Manufacturer:CaseIH
Type:Utility tractor
CaseIH JXU 95 Power
Engine (gross):95.2 hp
71.0 kW
CaseIH JXU 95 Engine
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Differential lock:Electro-hydraulic rear and limited slip front. Electro-hydraulic front optional.
Steering:power
Brakes:wet disc
Trailer brakes:hydraulic*Optional
 pneumatic*Optional
Cab:Two-post folding ROPS. Cab optional.
Transmissions:12-speed mechanical shuttle
 24-speed two-speed power shift
 12-speed power shuttle

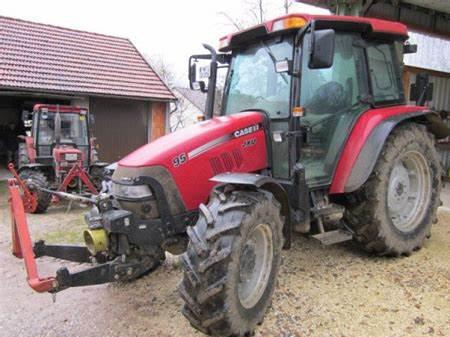

Photos
CaseIH JXU 95 photos...
Hydraulics
Rear valves:3*Optional
Mid valves:2*Optional
Pump flow:16.1 gpm
60.9 lpm
Steering flow:9.5 gpm
36.0 lpm
Tractor hitch
Rear lift:10803 lbs
4900 kg
 12897 lbs
5850 kg *Optional
Front lift:5512 lbs
2500 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:electro-hydraulic
Rear RPM:540/540E/1000
Front PTO:independent
Front RPM:1000
Dimensions & Tires
2WD Wheelbase:92.2 inches
234 cm
4WD Wheelbase:92.5 inches
234 cm
Weight:9369 lbs
4249 kg
Front tire:10.00-16
2WD Rear tire:480/70R34
Full dimensions and tires ...
Electrical
Ground:negative
Battery volts:12
